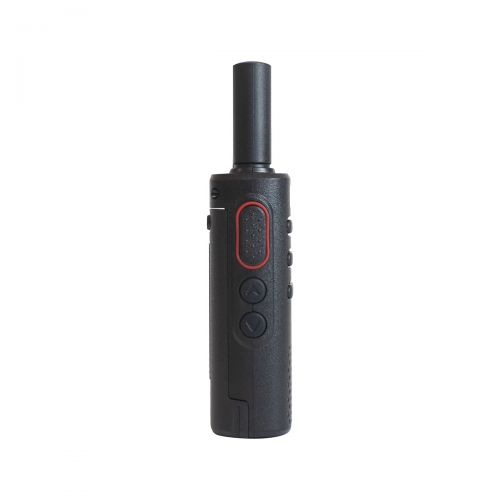

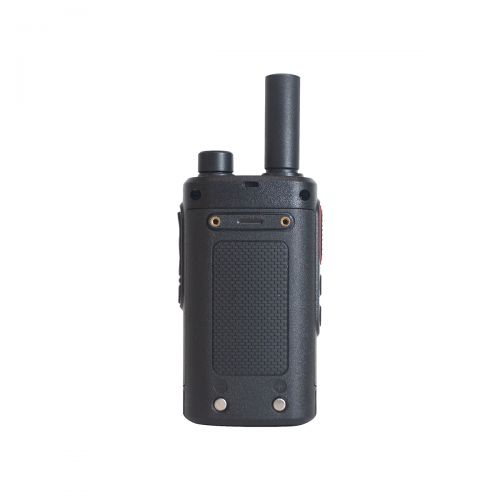

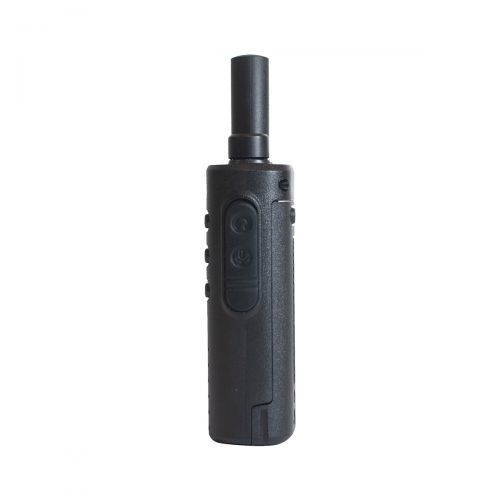

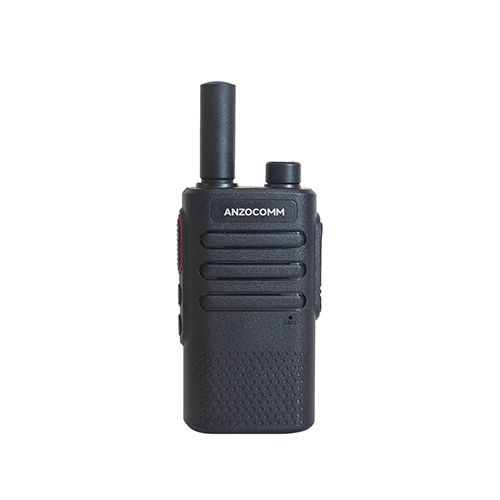

AT880 5km Long Range Transmitter Analog Radio
16 Channel storage / one-click to frequency / wireless replication
Frequency hopping function / Chinese and English broadcast
Computer programming encryption settings
Specifications | |
Model | AT880 |
UHF/VHF | VHF(136-174MHz）/UHF(400-470MHz) |
Channel Capacity | 16 |
Power Output | 5W |
Antenna Impedance | 50Ω |
Earphone Jack | 2.5mm+3.5mm |
Speaker | 16Ω 1W |
Battery | 1000mAh |
Power supply | 7.4V DC±15% |
Transmitter | |
Carrier Power Output | 5W |
Modulation Type | FM |
Modulation Sensitivity | <15mV |
Audio Distortion | ＜5% |
Frequency Deviation | ≤5KHz |
Modulation Characteristics | ±3dB |
Spurious Emission | ≥60dB |
Adjacent channel TX power | ≥65dB |
Receiver | |
Sensitivity | ≤0.25 μV(12dB S/N) |
Squelch sensitivity | ≤0.10 μV |
Audio Output | 1W (16Ω) |
Audio Response | +3 to -8.5 |
Receiving Bandwidth | ±7kHZ / ±3.5kHZ |
Adjacent channel selectivity | ≥84dB |
Standby Current | 60mA (Unsave);15mA (Save) |
Spurious response suppression | ≥60dB |
Intermodulation Immunity | ≥65dB |
Physical | |
Dimension (H*W*D) | 138X56X30mm |
Weight | ≈128g |
Working Temperature | -20℃-+60℃ |
Certifications | |
Protection Level | IP54 |
Applicable customer group: fleet / concrete company / logistics enforcement bureau / defense / public safety / site / KTV / hotel
Anzocomm is aim to be the leading industrial walkie talkie solution supplier.
So our service consists of 3 important parts:
1. Basic Warranty:
√ Replacement: Free new walkie talkie if it can not work at once it arrives.
√ Free maintenance and parts (without artificial faulty ) :
Item | Warranty |
Main Unit | 365 days |
Battery and Charger | 90 days |
Antenna and other parts | None |
√ Paid maintenance and parts: for artificial faulty
2. Brand OEM service:
√ Partly OEM service
√ Complete OEM service
3. Technical ODM service:
We have abundant of experience on industrial needs customization
√ Rail way station communication device
√ Hotel inner wifi communication structure
√ Security Guard Patrol system with walkie talkie
√ Irrigation Patrol system
√ Intelligent Parking system
√ Logistics Management system
30 Engineers:
It embraces 30 professional engineers, including hardware engineer, RF engineer,Android system engineers, embedded engineers.
10 Years:
It has 10 years of ODM experience on rail way project, security guard, patrol system, logistics customization, hotel inner communication system.
6000 Pieces:
It can produce 6000 pieces radios per month.
